T/S BOLT

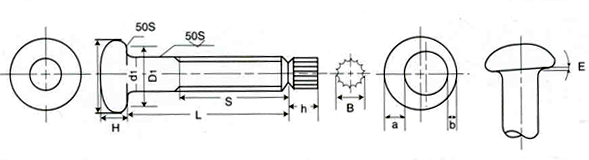

■ Specification

Nominal Diametery d1 D1 D H h B r a-b E S
Basic Tolerance Min Min Basic Tolerance App Basic Tolerance App Max Max Basic Tolerance
M16 16

+0.7

-0.2

 26 27 10 ±0.8 15 11.3 ±0.3 1.2~2.0 0.8 1 30

+5

0
M20 20

+0.8

-0.4

 33 34 13 ±0.9 18 14.1 0.9 35 +6
M22 22 37 38.5 14 19 15.4 1.1 40
M24 24 41 43 15 20 16.8 1.16~2.4 1.2 45 0
Length Under 50 From 50 To 120 Over 120
Tolerance of length ±1.0 ±1.4 ±1.8

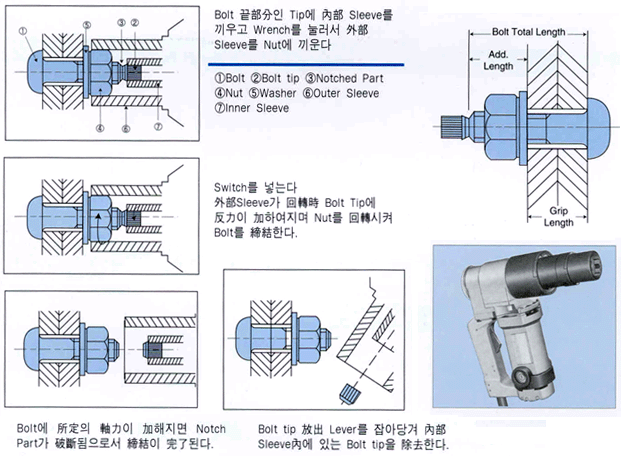

■ INSALLATON PROCEDURE

■ T.S BOLTS, NUTS, WASHERS(g)

구분 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 NUT WASHER
M16 185 191 199 207 215 223 231 239 247 255 263 271 279 287 295 303 311 319 57 20
M20 328 341 354 367 380 393 406 419 432 445 458 471 478 497 510 523 97 32
M22 463 478 493 508 523 538 553 568 583 598 613 628 643 658 673 137 52
M24 631 649 667 685 703 721 739 757 775 793 811 829 847 865 201 62
