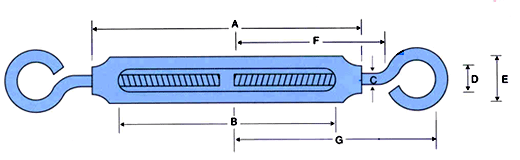

TURNBUCKLE
| A | B | C | D | E | F | G | 중량 | |
|---|---|---|---|---|---|---|---|---|
| 3/16 | 57.4 | 41.2 | 41.5 | 18.4 | 15 | 36 | 54.6 | 30 |
| 5/16 | 90 | 70 | 8 | 11 | 22 | 65 | 95 | 145 |
| 3/8 | 160 | 130 | 9 | 17 | 30 | 85 | 130 | 435 |
| 1/2 | 190 | 155 | 10 | 20 | 30 | 95 | 150 | 560 |
| 1/2 LONG | 255 | 215 | 10 | 30 | 35 | 140 | 190 | 790 |
| 5/8 | 250 | 200 | 15 | 25 | 45 | 130 | 190 | 1120 |
| 5/8 LONG | 350 | 300 | 15 | 30 | 45 | 180 | 240 | 1540 |
| 3/4 | 250 | 200 | 20 | 35 | 45 | 140 | 210 | 1670 |
| 3/4 LONG | 300 | 245 | 20 | 40 | 55 | 170 | 240 | 2050 |
